Flow control since 1988
Valves that holdthe line.
ISI marked gun metal and forged brass valves and cocks for water distribution, plumbing systems and industrial flow control.
- Years of manufacture
- 0+Years of manufacture
- Catalogue items
- 0+Catalogue items
- ISI marked valves
- 0%ISI marked valves
- Largest size
- 0"Largest size
The line, end to end
From the mainto the tap.
- Source
Water enters the distribution main.
- Isolation
A gate valve opens or shuts the run.
- Regulation

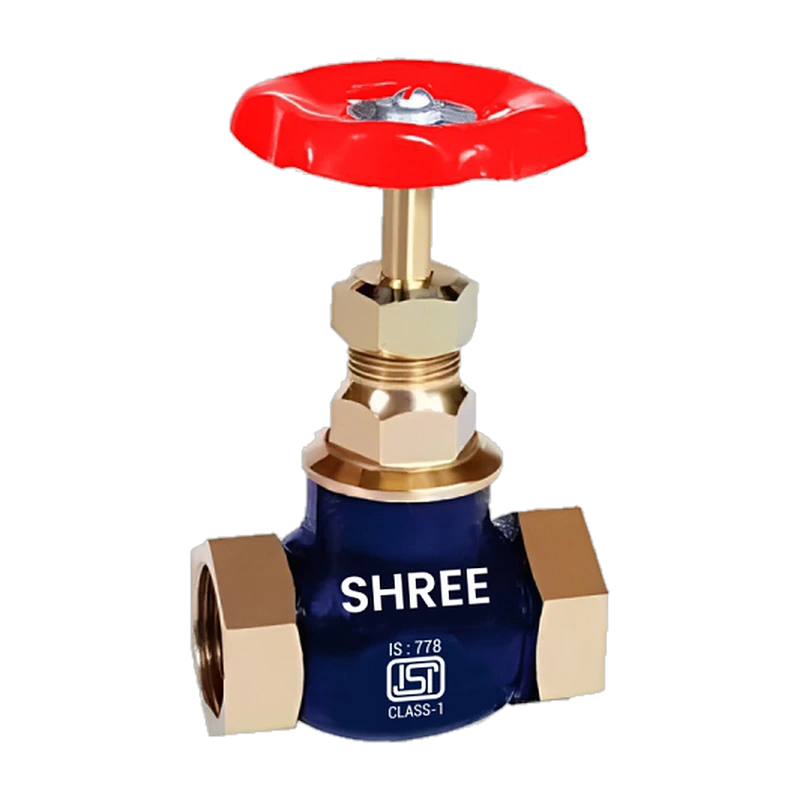

A globe or regulator valve trims the flow.
- Delivery

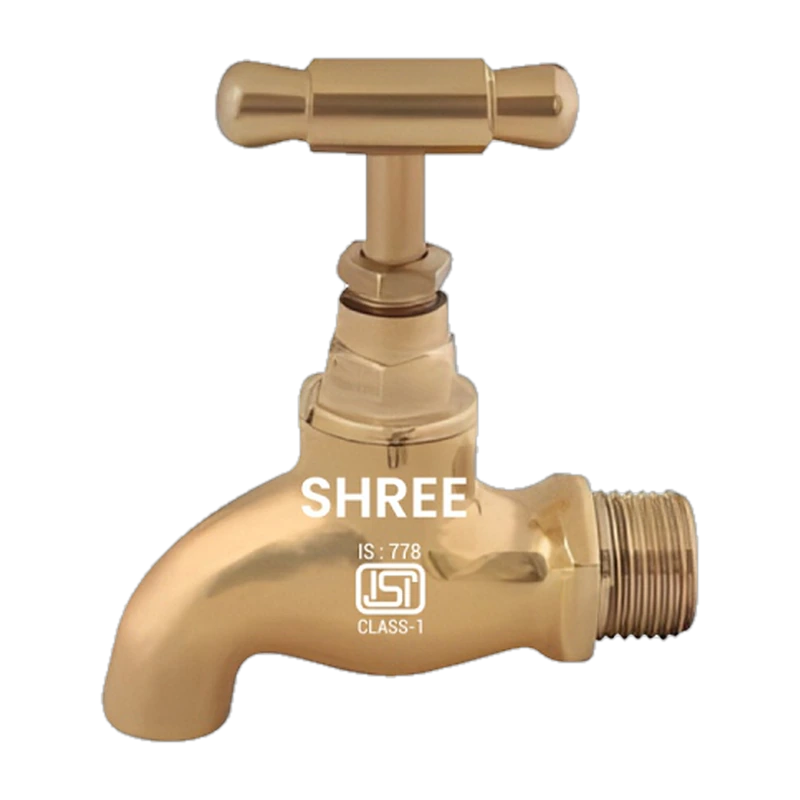

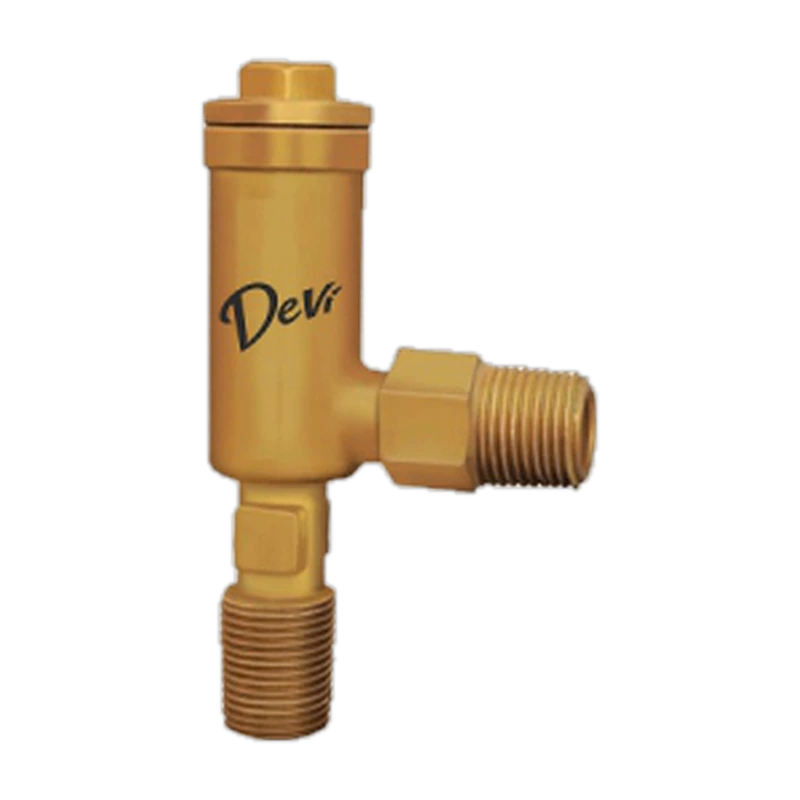

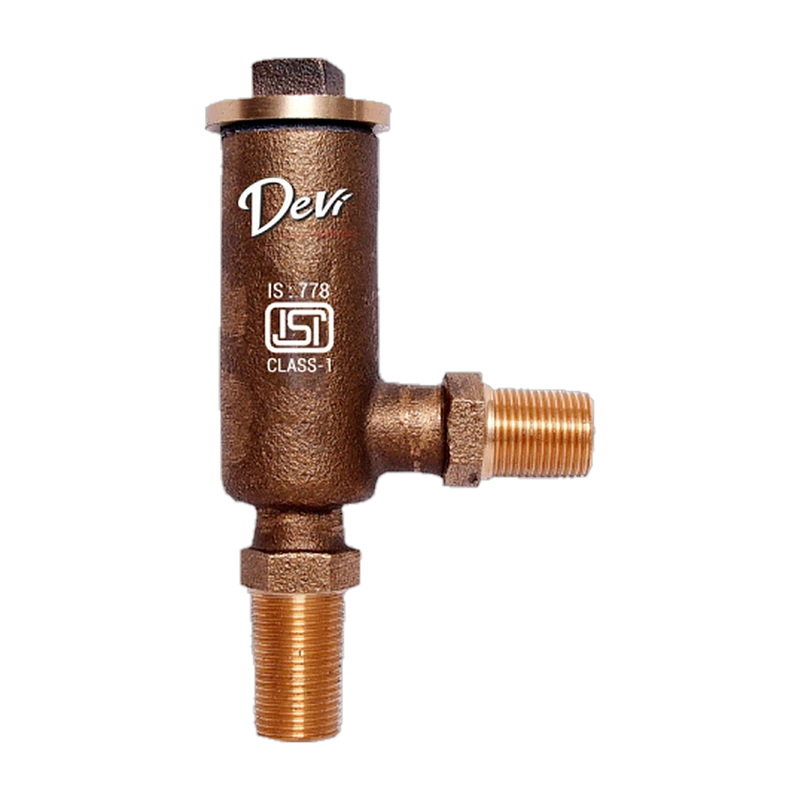

Bib and ferrule cocks serve the outlet.

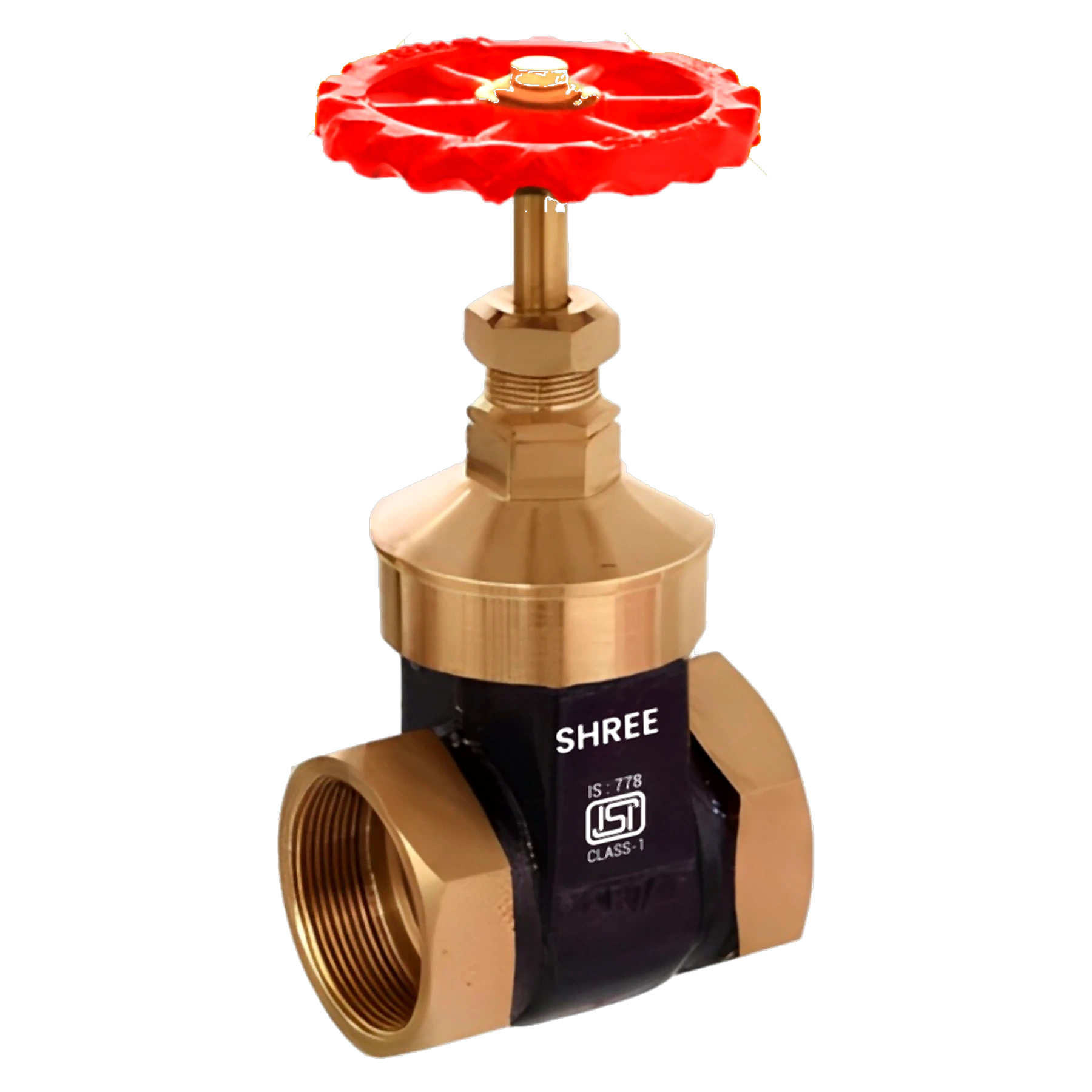

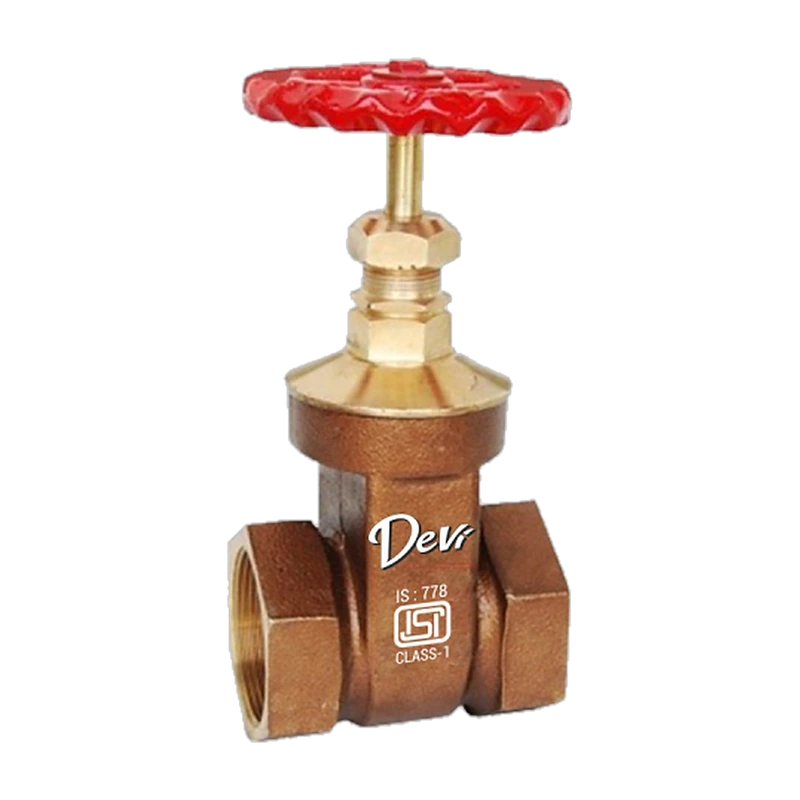

How a gate valve works
Open, throttled, shut.
Turning the hand wheel raises the wedge clear of the bore. Fully open, the valve gives an unobstructed path; seated, it shuts the line off. The diagram is a simplified outline of the parts listed in the catalogue — body, bonnet, stem, wedge and hand wheel.
- Rising wedge, non-return to a set position
- Gun metal body and wedge to IS 318 Gr. LTB-2
- Cast iron hand wheel to IS 210
Product showcase
Built for the line it sits in.

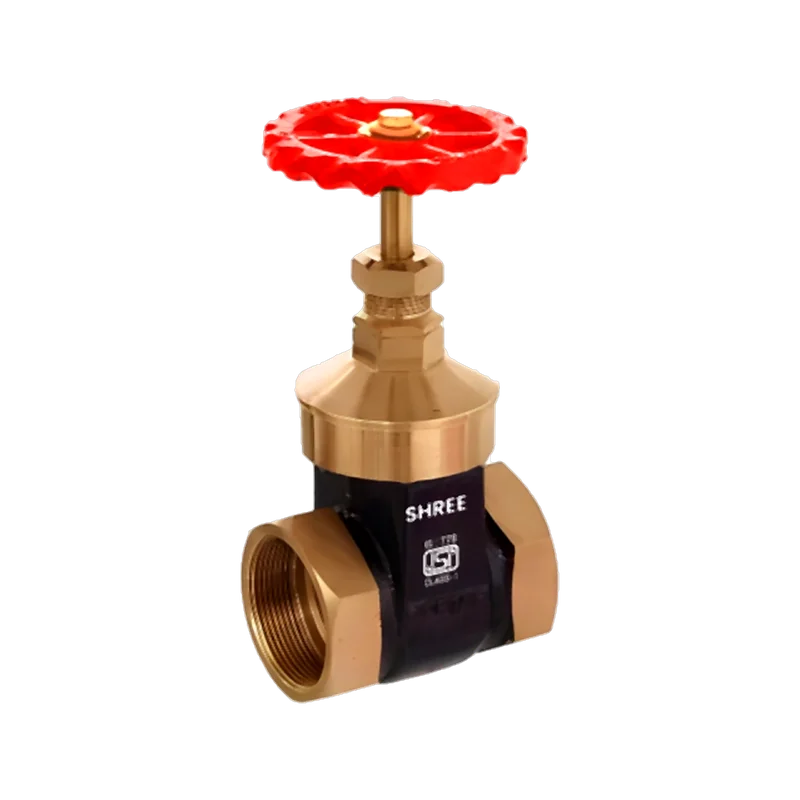

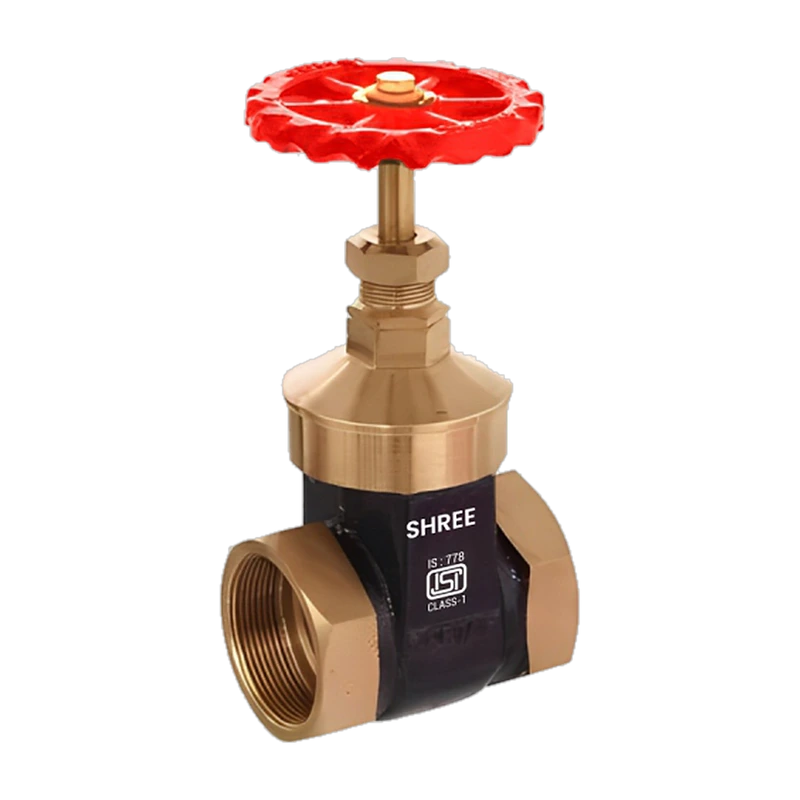

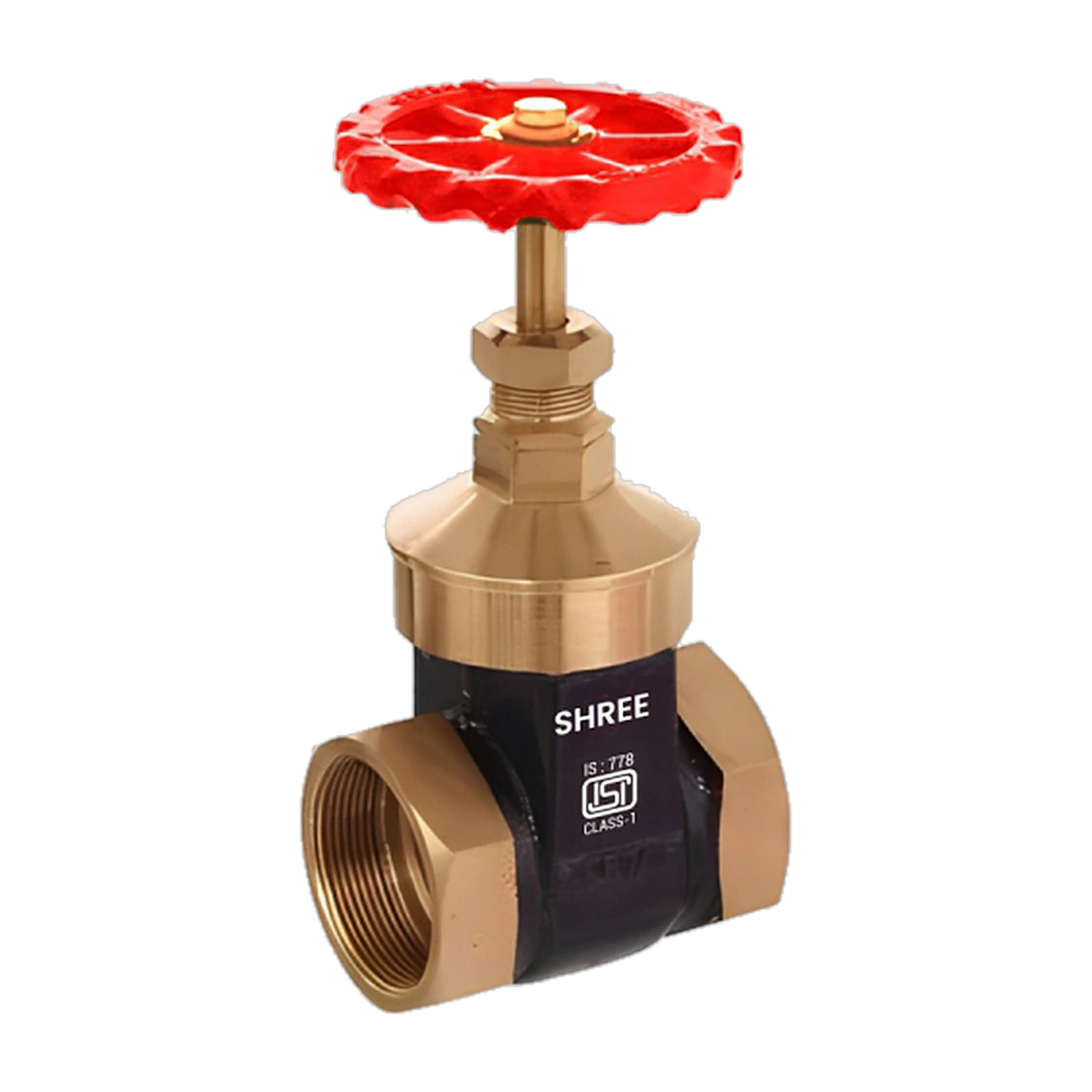

Shree Gun Metal Gate Valve
Screwed-in bonnet gun metal gate valve with inside screw non-rising stem and integral seat, manufactured to IS 778 in Class-1 and Class-2.
- Size range
- 8mm to 100mm
- Pressure rating
- Class-1 (10 Bar) & Class-2 (16 Bar)
- Product standard
- IS 778
- Testing
- IS 6157
Technical data
Specified, not approximated.
Dimensions per the printed catalogue sheet for each size.
| Part | Material | Specification |
|---|---|---|
| Body | Leaded Tin BronzeIS 318 Gr. LTB-2 | IS 318 Gr. LTB-2 |
| Bonnet | Leaded Tin BronzeIS 318 Gr. LTB-2 | IS 318 Gr. LTB-2 |
| Wedge / Disc | Leaded Tin BronzeIS 318 Gr. LTB-2 | IS 318 Gr. LTB-2 |
| Stem | High Tensile BrassIS 320 | IS 320 |
| Gland & Gland Nut | Forged BrassIS 6912 | IS 6912 |
| Hand Wheel | Cast IronIS 210 | IS 210 |
| Gland Packing | Asbestos Free PTFE | — |
- ISI markedEvery valve and cock in the range.
- Gun metal & brassLTB-2 bronze and IS 6912 forged brass.
- 1/4" to 4"Sizes as listed per product.
- Tested to standardPer the standard named on each sheet.
- Water & industryDistribution, plumbing, process lines.
- Direct sales deskSpecification help before you order.
By what it does to the flow
Every category, one visual language.
Request a quotation
Tell us the size and the duty.
Send the product, size and quantity you need. Our sales desk replies with pricing, availability and the relevant catalogue sheet.
- Itemised enquiry
- Size and quantity
- Application notes
- Kept confidential
The full quotation form captures product, size, quantity, application and preferred contact method.
Enquiries are stored securely and reviewed by the sales desk.
