Shree Valves & Cocks · Pipeline Accessories

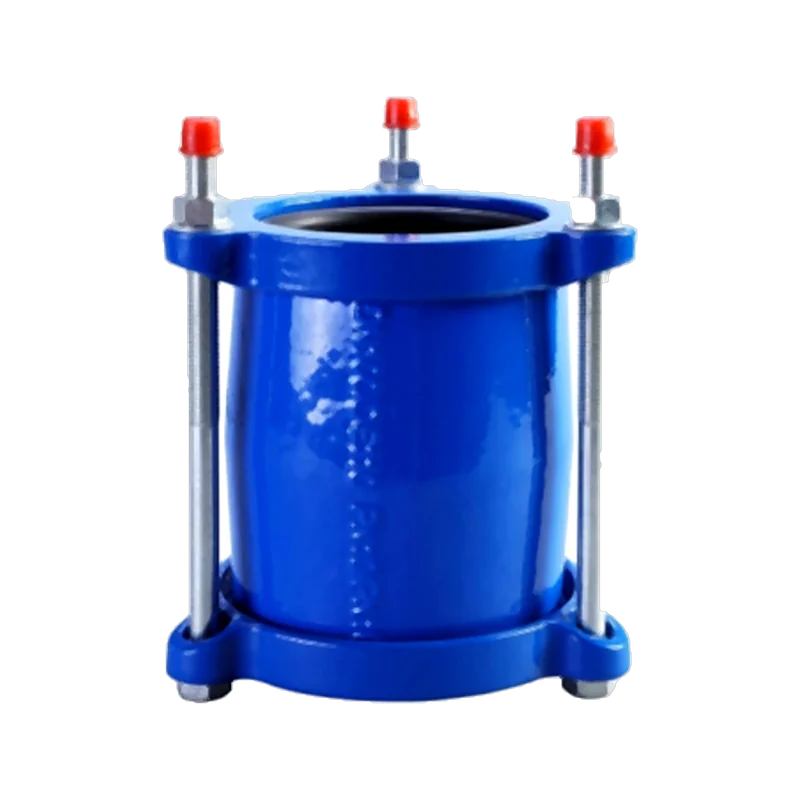

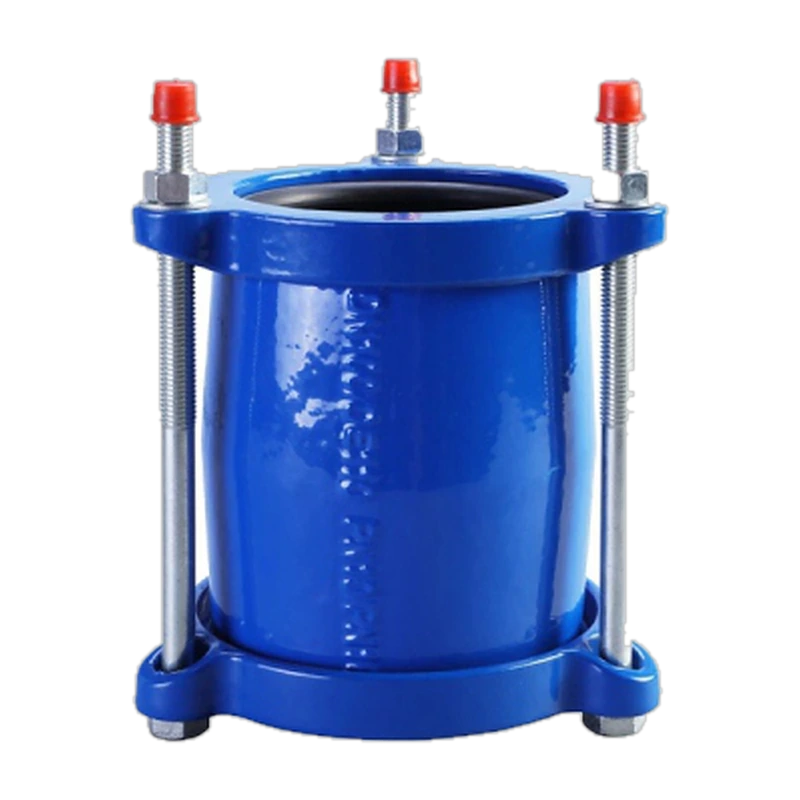

Shree DI Bolt Coupling
Ductile iron GGG50 bolt coupling with blue FBE coating and EPDM/NBR seals, PN10/16 working pressure.
- Pressure rating
- PN 10 / 16
- Size range
- 2" to 12" (DN 32 to DN 200)
- Product standard
- Mfg. Standard
- Body material
- Ductile Iron
Specifications
| Pressure Rating | PN 10 / 16 |
|---|---|
| Testing Standard | Hydraulic Test |
| Product Standard | Mfg. Standard |
| Size Range | 2" to 12" (DN 32 to DN 200) |
| End Connection | Screwed BSP (IS 554) |
Key Features
- PN 10/16 working pressure
- Equipped with galvanized steel bolts and nuts
- EPDM or NBR rubber seals
- Ductile iron GGG50 with blue FBE coating
- Size range from 2" to 12"
Applications
- Pipeline jointing and maintenance
- Repair and replacement works
- Pump and pipeline assemblies
Available Sizes
Swipe the table sideways →
| Nominal Size (inch) | Nominal Size (mm) | Standard |
|---|---|---|
| 1-1/4" | 32 mm | Mfg. Standard |
| 1-1/2" | 40 mm | Mfg. Standard |
| 2" | 50 mm | Mfg. Standard |
| 2-1/2" | 65 mm | Mfg. Standard |
| 3" | 80 mm | Mfg. Standard |
| 4" | 100 mm | Mfg. Standard |
| 5" | 125 mm | Mfg. Standard |
| 6" | 150 mm | Mfg. Standard |
| 8" | 200 mm | Mfg. Standard |
Full face-to-face and end-to-end dimension tables are printed on the downloadable tech sheet for this product.
Material Specification
Swipe the table sideways →
| Part | Material | Specification |
|---|---|---|
| Sleeve | Ductile Iron | GGG50 |
| End Ring | Ductile Iron | GGG50 |
| Gasket | Rubber | EPDM |
| Bolt | Galvanized Steel | ISO 898-1:1999 |
| Nut | Galvanized Steel | ISO 898-1:1992 |
| Cap | Plastic | — |
