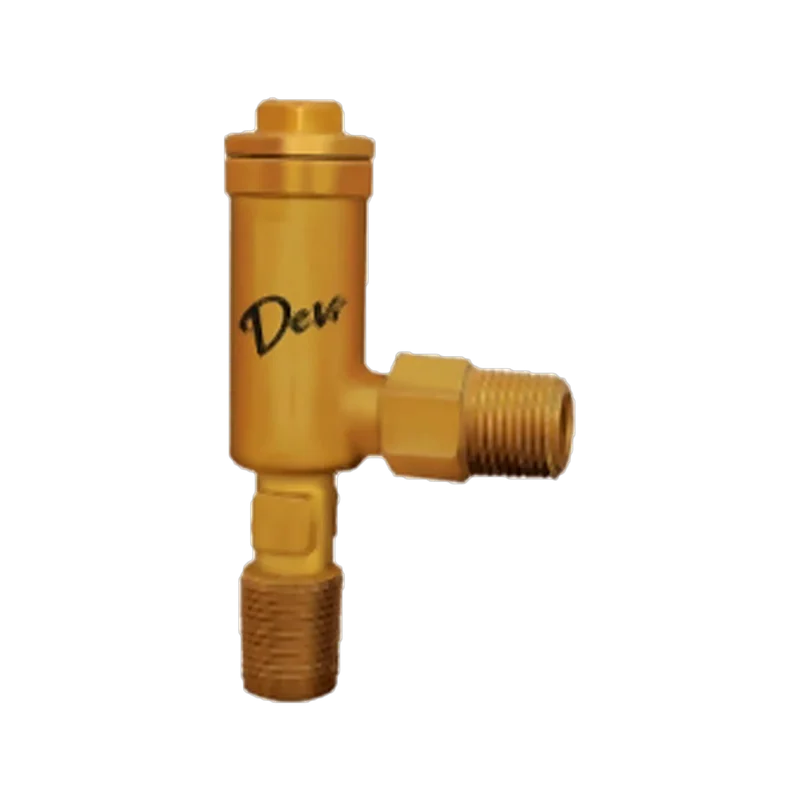

Shree Brass Ferrule Cock
Brass ferrule cock for service connections, hydraulically tested at 300 PSIG body and seat.
- Pressure rating
- 300 PSIG (Body & Seat)
- Size range
- 15mm to 25mm
- Product standard
- Mfg. Standard
- Body material
- Forged Brass
Specifications
| Pressure Rating | 300 PSIG (Body & Seat) |
|---|---|
| Testing Standard | Hydraulic Test |
| Product Standard | Mfg. Standard |
| Size Range | 15mm to 25mm |
| End Connection | Screwed BSP (IS 554) |
Key Features
- Body test pressure: 300 PSIG
- Seat test pressure: 300 PSIG
- Male inlet BSP taper
- Male outlet BSP parallel
- HSN code 84818090
Applications
- House service connections from water mains
- Municipal distribution tappings
- Metering and consumer supply points
Available Sizes
Swipe the table sideways →
| Nominal Size (inch) | Nominal Size (mm) | Standard |
|---|---|---|
| 1/2" | 15 mm | Mfg. Standard |
| 3/4" | 20 mm | Mfg. Standard |
| 1" | 25 mm | Mfg. Standard |
Full face-to-face and end-to-end dimension tables are printed on the downloadable tech sheet for this product.
Material Specification
Swipe the table sideways →
| Part | Material | Specification |
|---|---|---|
| Body | Forged Brass | IS 6912 |
| Plug | Brass | — |
| Seat | Nitrile Rubber | — |
Request a quotation for this product
Send us the size and quantity you need. Every enquiry is logged with a reference number and answered by the Shree Valves sales desk with pricing and availability.
Request a quote for Shree Brass Ferrule Cock
