Shree Valves & Cocks · Gun Metal Valves
Shree Gun Metal Ferrule Cock
ISI Marked · Class 1Gun metal ferrule cock for domestic water service connections, tested to IS 2692 at PN-16.
- Pressure rating
- PN-16
- Size range
- 15mm
- Product standard
- IS 2692
- Body material
- Leaded Tin Bronze
Specifications
| Item Code | IS 025 |
|---|---|
| Pressure Rating | PN-16 |
| Testing Standard | IS 2692 |
| Product Standard | IS 2692 |
| Size Range | 15mm |
| End Connection | Screwed BSP (IS 554) |
Key Features
- Design standard: IS 2692
- Male inlet BSP taper, male outlet BSP parallel
- Screw down pattern with locking cap
- Gun metal body with brass internals
- Suitable for municipal service connections
Applications
- House service connections from water mains
- Municipal distribution tappings
- Metering and consumer supply points
Available Sizes
Swipe the table sideways →
| Nominal Size (inch) | Nominal Size (mm) | Standard |
|---|---|---|
| 1/2" | 15 mm | IS 2692 |
Full face-to-face and end-to-end dimension tables are printed on the downloadable tech sheet for this product.
Material Specification
Swipe the table sideways →
| Part | Material | Specification |
|---|---|---|
| Body | Leaded Tin Bronze | IS 318 Gr. LTB-2 |
| Plug | Forged Brass | IS 6912 |
| Seat | Nitrile Rubber | — |
| Cap | Forged Brass | — |
| Washer Plate | Brass | — |

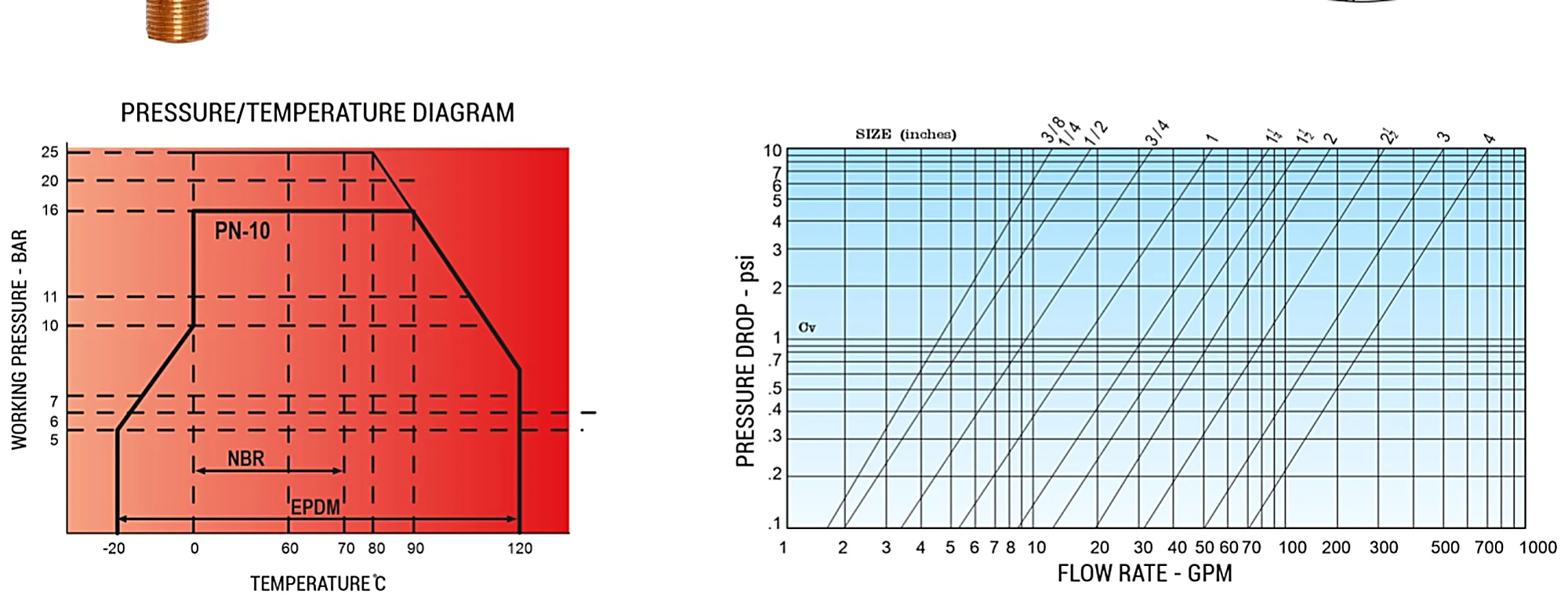

Pressure / Temperature & Flow Diagrams
Performance data verified against Shree Valves factory test records. Subject to change without notice under our continuing product improvement programme.
