Devi Valves & Cocks · Brass Valves & Cocks

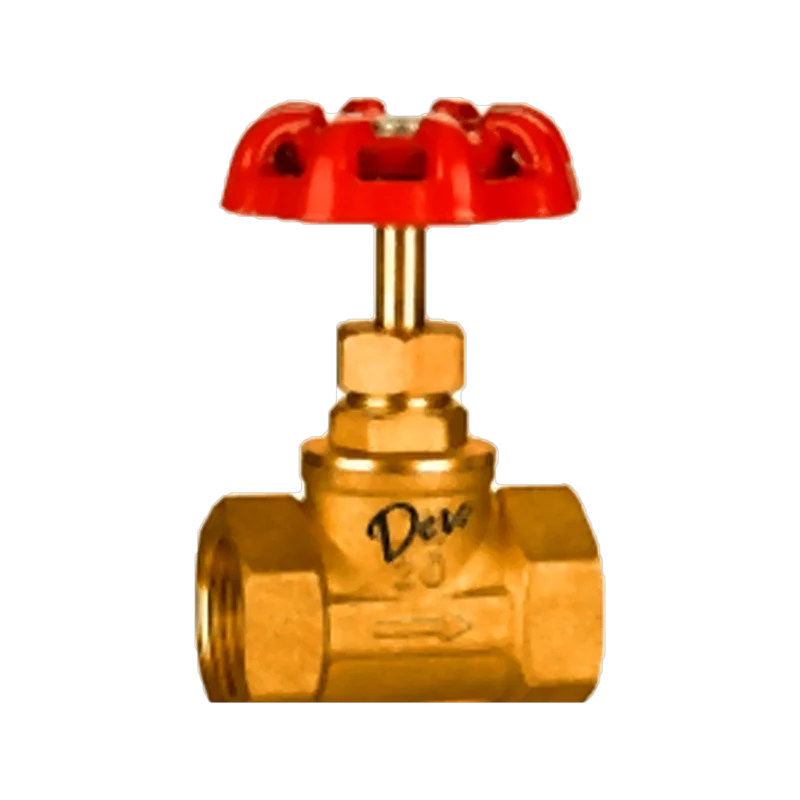

Devi Brass Wheel Valve
Manufactured to IS 778Brass wheel valve conforming to IS 778-1984 Class-1, with screwed-in bonnet and integral seat rising stem.
- Pressure rating
- Body 1.5 MPa / Seat 1.0 MPa (Hyd.)
- Size range
- 15mm
- Manufacturing method
- Sand Cast
- Body material
- Cast Brass
Specifications
| Pressure Rating | Body 1.5 MPa / Seat 1.0 MPa (Hyd.) |
|---|---|
| Testing Standard | IS 778-1984 Class-1 |
| Product Standard | IS 778 |
| Manufacturing Method | Sand Cast |
| Size Range | 15mm |
| End Connection | Screwed BSP (IS 554) |
Key Features
- Manufactured to IS 778 Class-1 design — ISI licence coverage to be confirmed with the Sales Desk
- Screwed-in bonnet, inside screw
- Integral seat rising stem and back seat arrangement
- Sturdy hand wheel conforming to IS 778-1984 Class-1
- Body test pressure 1.5 MPa, seat test 1.0 MPa
- Screwed female ends (BSP)
Applications
- Sanitary fittings and washbasin points
- Garden, terrace and utility outlets
- Residential and commercial washrooms
Available Sizes
Swipe the table sideways →
| Nominal Size (inch) | Nominal Size (mm) | Standard |
|---|---|---|
| 1/2" | 15 mm | IS 778 |
Full face-to-face and end-to-end dimension tables are printed on the downloadable tech sheet for this product.
Material Specification
Swipe the table sideways →
| Part | Material | Specification |
|---|---|---|
| Body | Cast Brass | — |
| Stem | High Tensile Brass | IS 320 |
| Hand Wheel | Steel, Powder Coated | — |
Request a quotation for this product
Send us the size and quantity you need. Every enquiry is logged with a reference number and answered by the Shree Valves sales desk with pricing and availability.
Contact Help Desk & Sales Desk: +91 89681 03666 · WhatsApp available on the same number.
