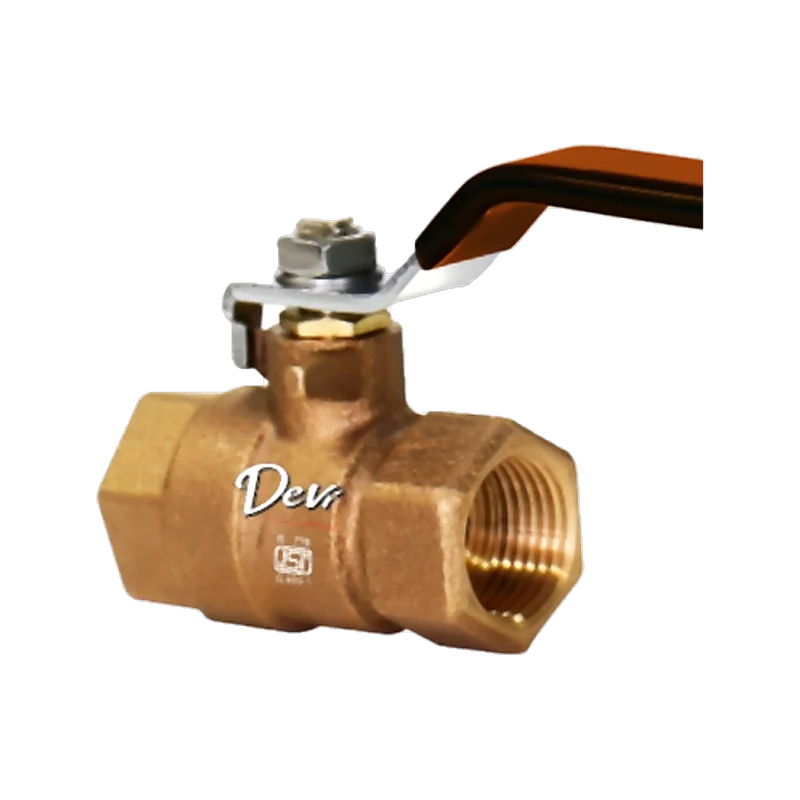

Devi Gun Metal Full Bore Ball Valve
Manufactured to Company StandardFull bore ball valve rated CL-150 with chrome plated ball and PTFE seats, tested to BSEN 12266.
- Pressure rating
- CL-150
- Size range
- 15mm to 100mm
- Manufacturing method
- Sand Cast
- Body material
- Cast Brass
Specifications
| Item Code | GM 0132 |
|---|---|
| Pressure Rating | CL-150 |
| Testing Standard | BSEN 12266 Part-1 |
| Product Standard | Mfg. Standard |
| Manufacturing Method | Sand Cast |
| Size Range | 15mm to 100mm |
| End Connection | Screwed BSP (IS 554) |
Key Features
- Full bore, minimum pressure drop
- Hard chrome plated ball
- PTFE seats, NBR 'O' ring
- Quarter turn lever operation
- Screwed female BSP ends
Applications
- Quick shut-off on plumbing risers
- Isolation duty in industrial water lines
- Hot and cold water distribution
Available Sizes
Swipe the table sideways →
| Nominal Size (inch) | Nominal Size (mm) | Standard |
|---|---|---|
| 1/2" | 15 mm | Mfg. Standard |
| 3/4" | 20 mm | Mfg. Standard |
| 1" | 25 mm | Mfg. Standard |
| 1-1/4" | 32 mm | Mfg. Standard |
| 1-1/2" | 40 mm | Mfg. Standard |
| 2" | 50 mm | Mfg. Standard |
| 2-1/2" | 65 mm | Mfg. Standard |
| 3" | 80 mm | Mfg. Standard |
| 4" | 100 mm | Mfg. Standard |
Full face-to-face and end-to-end dimension tables are printed on the downloadable tech sheet for this product.
Material Specification
Swipe the table sideways →
| Part | Material | Specification |
|---|---|---|
| Body | Cast Brass | — |
| Ball / Plug | Cast Brass, Hard Chrome Plated | — |
| Seat | PTFE | — |
| Stem | High Tensile Brass | IS 320 |
| 'O' Ring | NBR / EPDM | — |
| Lever / Handle | Steel, PVC Coated | — |

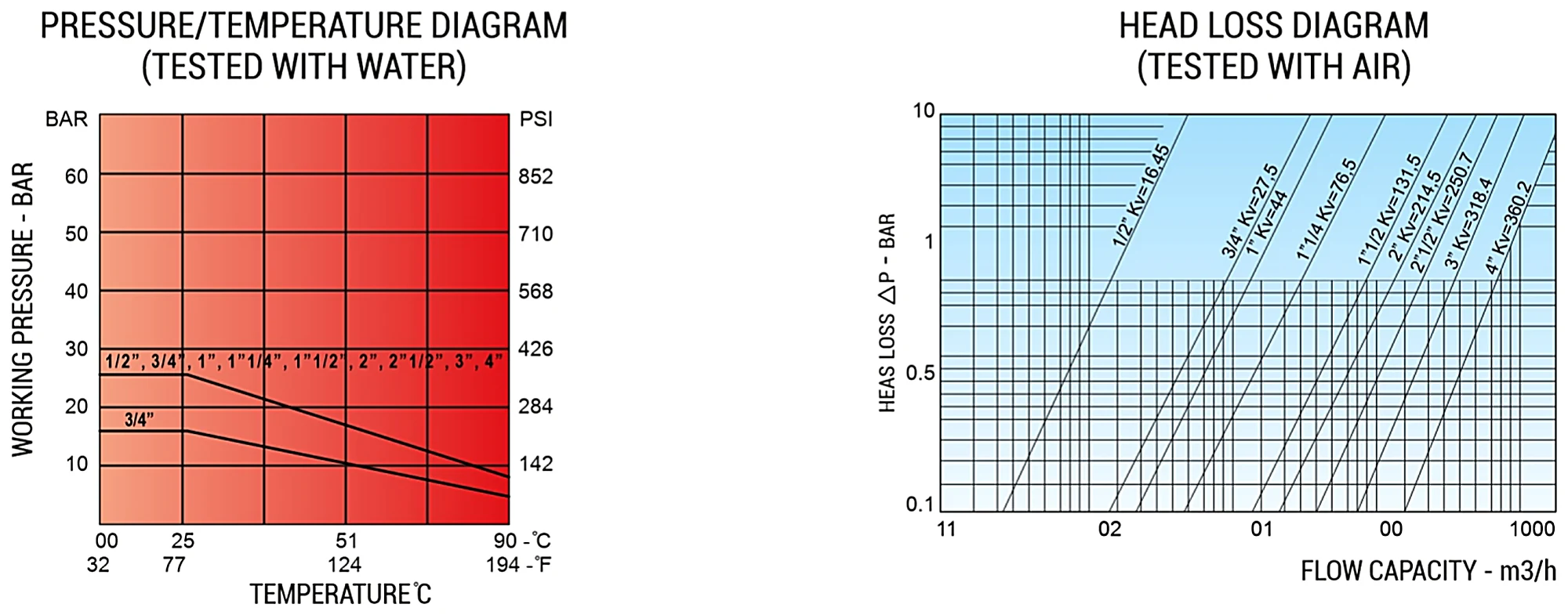

Pressure / Temperature & Flow Diagrams
Performance data verified against Shree Valves factory test records. Subject to change without notice under our continuing product improvement programme.
