Devi Valves & Cocks · Gun Metal Valves

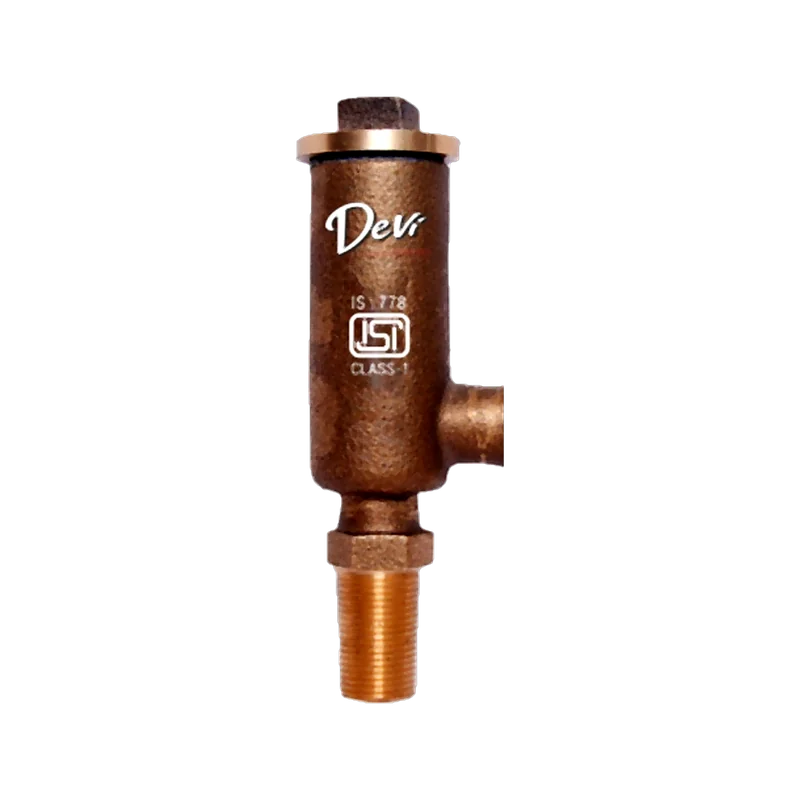

Devi Gun Metal Ferrule Cock
ISI Marked · Class 1Gun metal ferrule cock to IS 2692, PN-16, for 15mm service connections.
- Pressure rating
- PN-16
- Size range
- 15mm
- Product standard
- IS 2692
- Body material
- Leaded Tin Bronze
Specifications
| Item Code | GM 0289 |
|---|---|
| Pressure Rating | PN-16 |
| Testing Standard | IS 2692 |
| Product Standard | IS 2692 |
| Size Range | 15mm |
| End Connection | Screwed BSP (IS 554) |
Key Features
- Design standard: IS 2692
- PN-16 working pressure
- Male inlet BSP taper, male outlet BSP parallel
- Locking cap with washer plate
- HSN code 84818090
Applications
- House service connections from water mains
- Municipal distribution tappings
- Metering and consumer supply points
Available Sizes
Swipe the table sideways →
| Nominal Size (inch) | Nominal Size (mm) | Standard |
|---|---|---|
| 1/2" | 15 mm | IS 2692 |
Full face-to-face and end-to-end dimension tables are printed on the downloadable tech sheet for this product.
Material Specification
Swipe the table sideways →
| Part | Material | Specification |
|---|---|---|
| Body | Leaded Tin Bronze | IS 318 Gr. LTB-2 |
| Plug | Forged Brass | — |
| Seat | Nitrile Rubber | — |
| Nut & Cap | Brass | — |

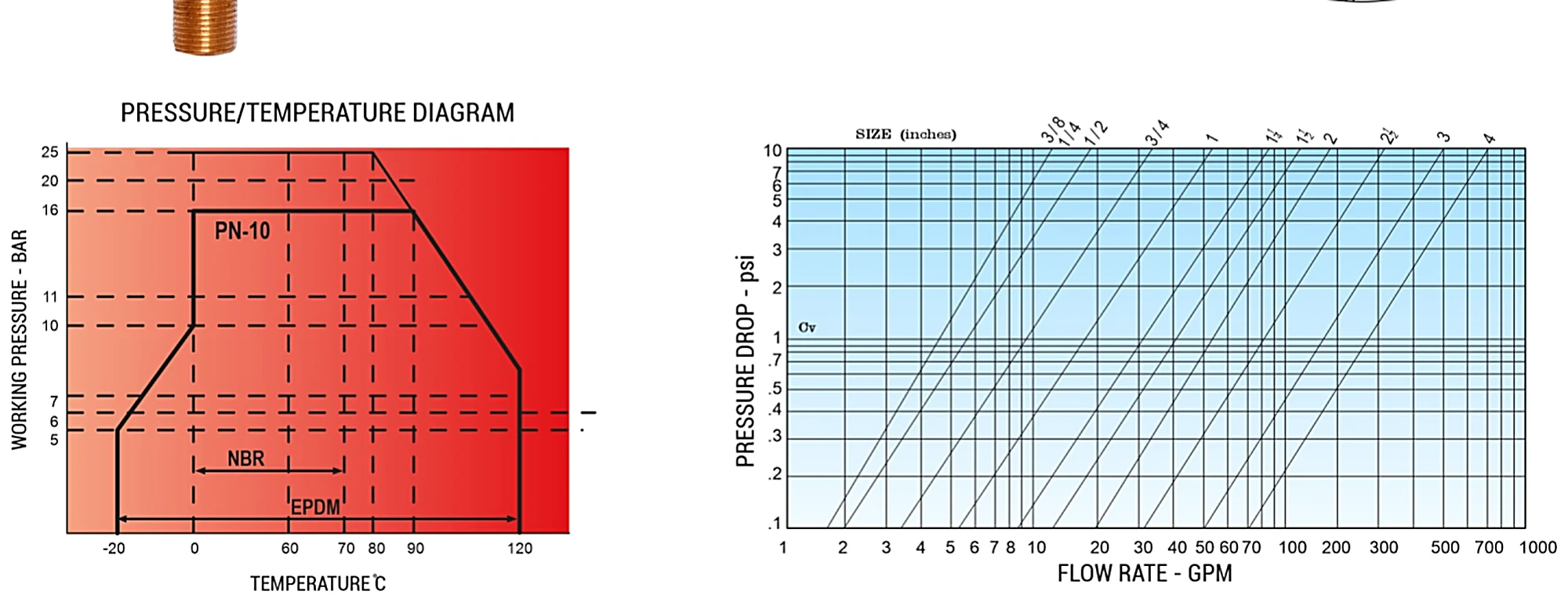

Pressure / Temperature & Flow Diagrams
Performance data verified against Shree Valves factory test records. Subject to change without notice under our continuing product improvement programme.
