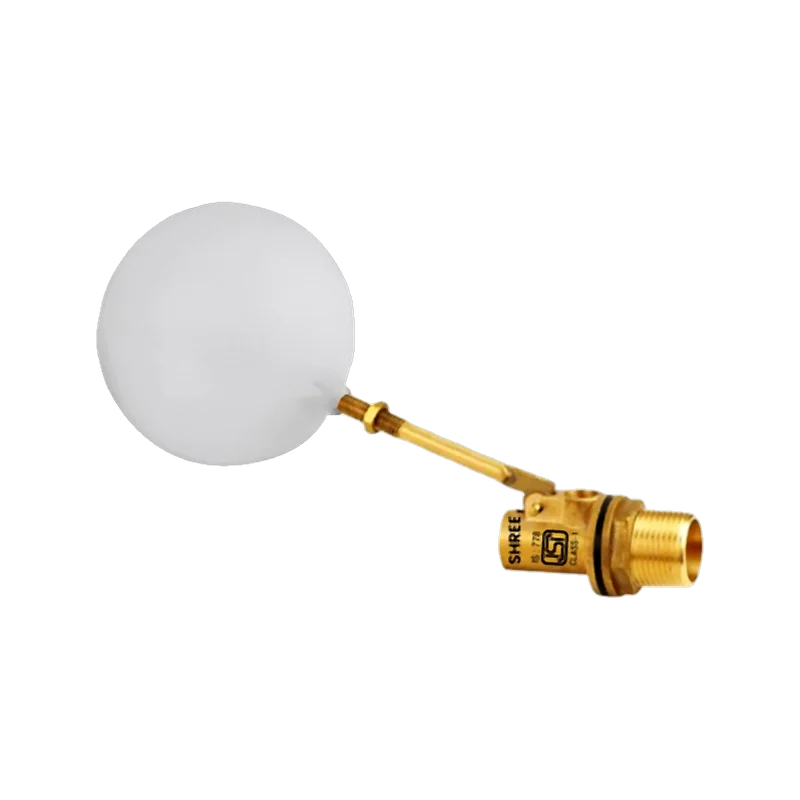

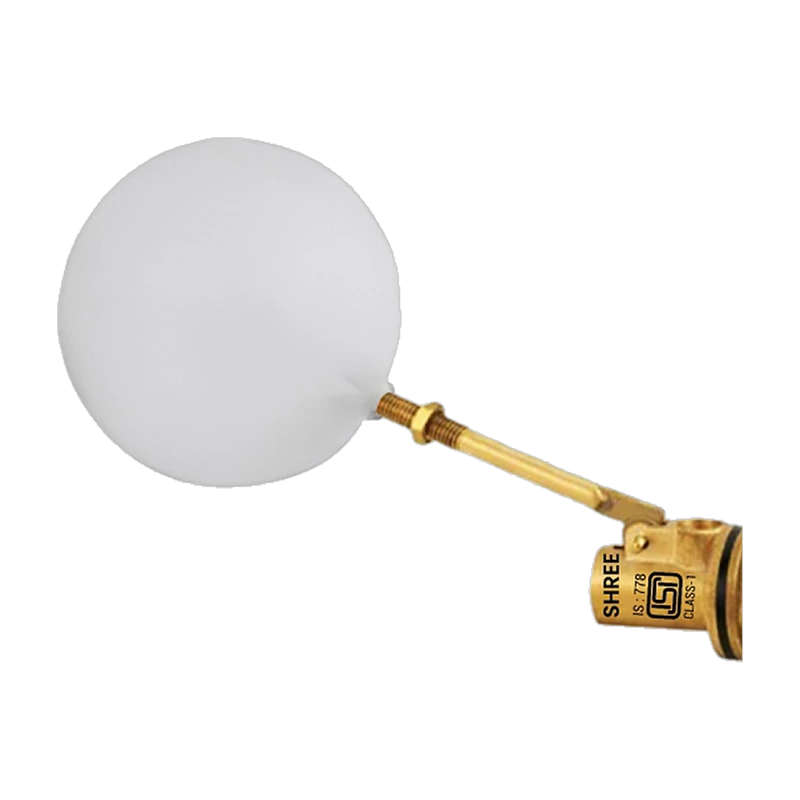

Shree Brass Float Valve
Brass ball float valve with polypropylene float for automatic level control in overhead and storage tanks.
- Pressure rating
- PN-10
- Size range
- 15mm to 50mm
- Product standard
- Mfg. Standard
- Body material
- Forged Brass
Specifications
| Item Code | FLB 066 |
|---|---|
| Pressure Rating | PN-10 |
| Testing Standard | BSEN 12266 Part-1 |
| Product Standard | Mfg. Standard |
| Size Range | 15mm to 50mm |
| End Connection | Screwed BSP (IS 554) |
Key Features
- Automatic tank level control
- Forged brass body and lever arm
- High impact polypropylene float ball
- Renewable nitrile washer seating
- Male BSP inlet thread
Applications
- Overhead and underground storage tanks
- Automatic level control on reservoirs
Available Sizes
Swipe the table sideways →
| Nominal Size (inch) | Nominal Size (mm) | Standard |
|---|---|---|
| 1/2" | 15 mm | Mfg. Standard |
| 3/4" | 20 mm | Mfg. Standard |
| 1" | 25 mm | Mfg. Standard |
| 1-1/4" | 32 mm | Mfg. Standard |
| 1-1/2" | 40 mm | Mfg. Standard |
| 2" | 50 mm | Mfg. Standard |
Full face-to-face and end-to-end dimension tables are printed on the downloadable tech sheet for this product.
Material Specification
Swipe the table sideways →
| Part | Material | Specification |
|---|---|---|
| Body | Forged Brass | IS 6912 |
| Lever Arm | Brass | — |
| Float Ball | Polypropylene | — |
| Washer | Nitrile Rubber | — |

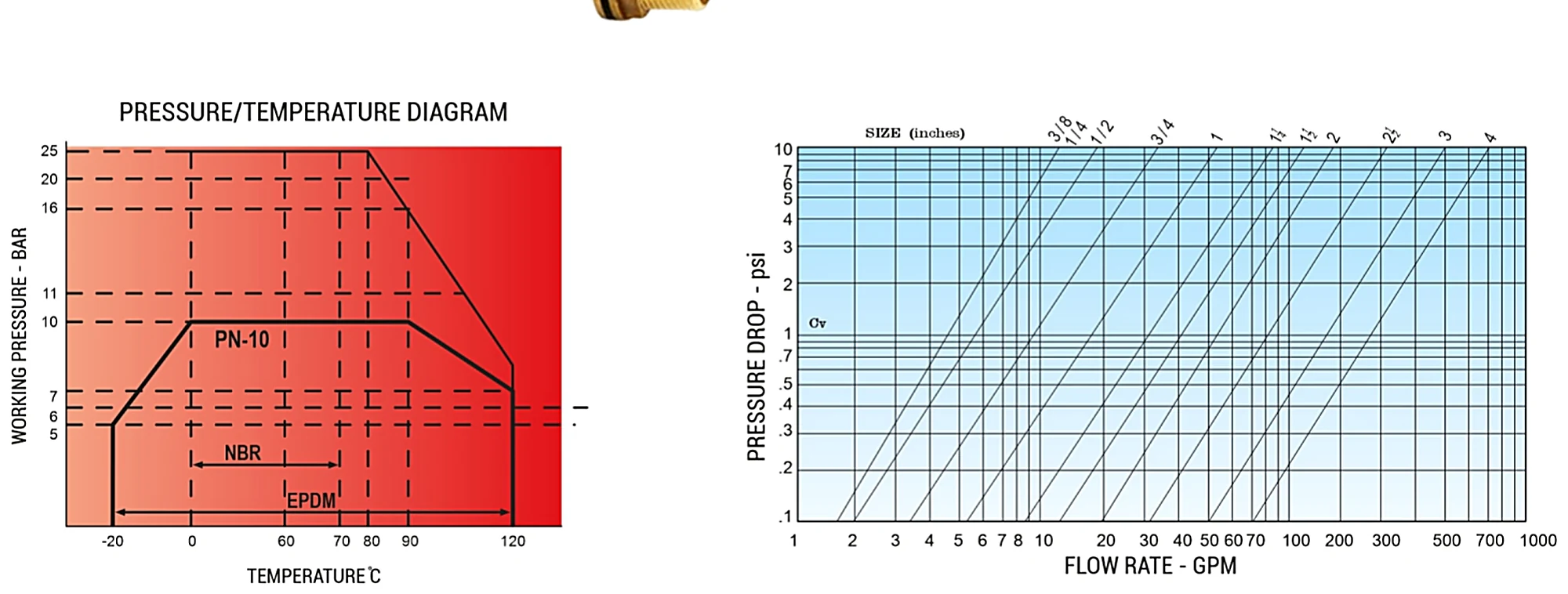

Pressure / Temperature & Flow Diagrams
Performance data verified against Shree Valves factory test records. Subject to change without notice under our continuing product improvement programme.
